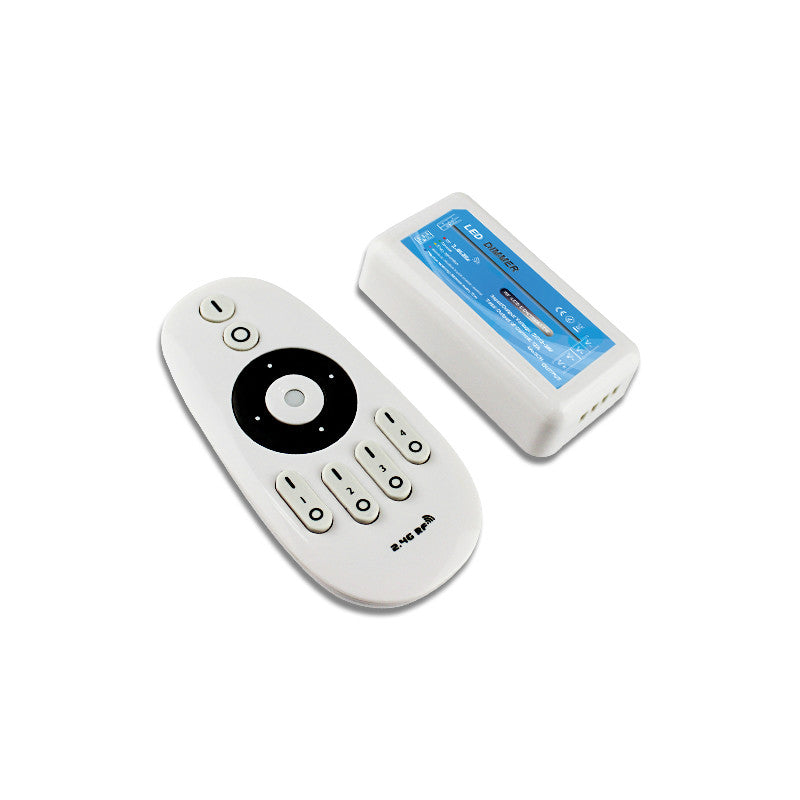

4 Zone LED Single Color CCT Dimmer PWM LED Controller Set

visitors are viewing

Translation missing: en.sections.featured_product.gallery_thumbnail_alt

4 Zone LED Single Color CCT Dimmer PWM LED Controller Set

28.99

In Stock -

Offer Ends in:

Earn 14 Reward Points. Learn More...

Model Number:

Quantity:

- +

Add to Wishlist Added to Wishlist

Order in the next to get it by

Ask us any Question

Details

Type: 2.4G RF controller
Availability: In Stock

Description

Product Description

Noticed:
1 set=1 remote control + 1 receiver, 1 remote control can control 4 or more receivers, So when you buy any 1 remote need to buy 1 or 4 receivers.

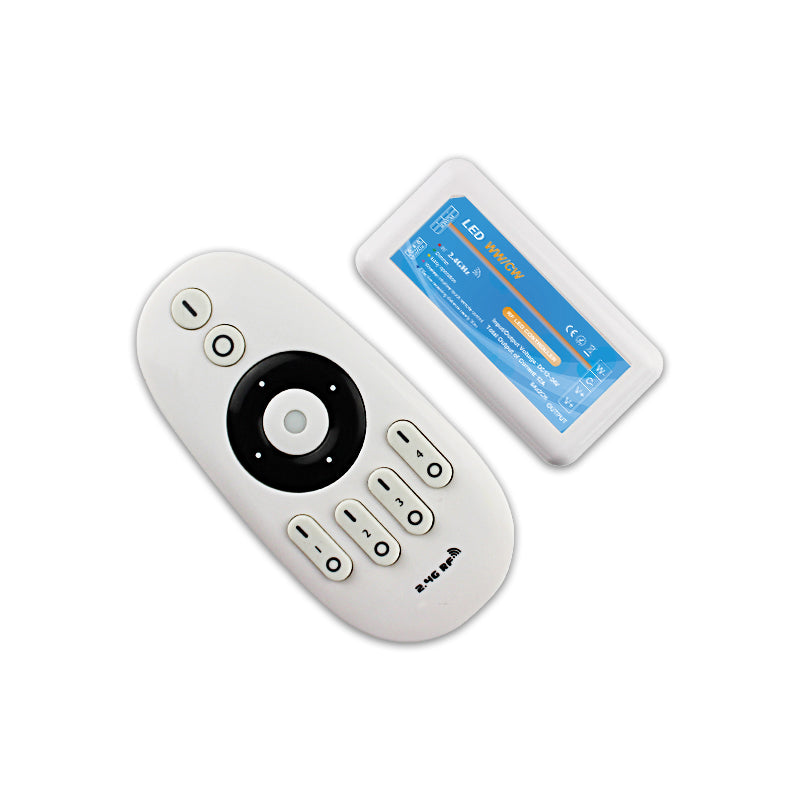

Dimmer remote need dimmer receiver, CCT remote need CCT receiver.

1: PWM signal touch press button led dimmer, CCT controller

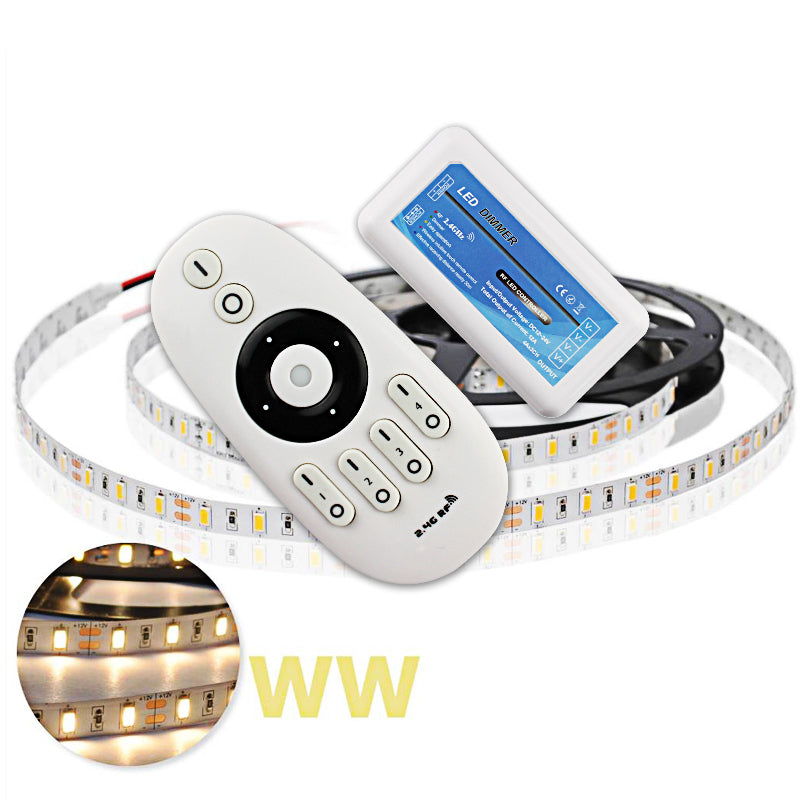

2: Can control all kinds of constant voltage DC12V-24V LED strips, led modules and others low voltage led light;

3: RF2.4GHZ Wireless control, High speed, more stability;

5: It can control 4 zones together or saparetely.

6: Can dimming brightness and flash models;

7: 4 zones controller means that 1 remote can control 4 or even more receivers.

Technical Parameters:

Name	led dimmer/CCT controller	Working temperature	-20~55℃
Supply voltage	DC12V~24V	Static power consumption	<1W
Output	4A*3CH	Output power	12V:< 144W;24V:<144W
Connection mode	Common anode	Controller size	L85×W45×H23mm

Functions

I. 1 Remote can control 4 zones lights separately, or control them all together. No limits about the drivers in each zone.
II. Modes : Static colorS, Strobe flash, Gradually fade.
III. Speed+/- can be used in dynamic modes, Brightness+/- can be used in static color.
IV. 2.4Ghz Radio Frequency technology we adopted, the signal will be more stable and anti-jamming than 433Mhz RF and Infrared.

V. Modes Details: 1. Static Color 2. strobe-flash 3. gradually fade

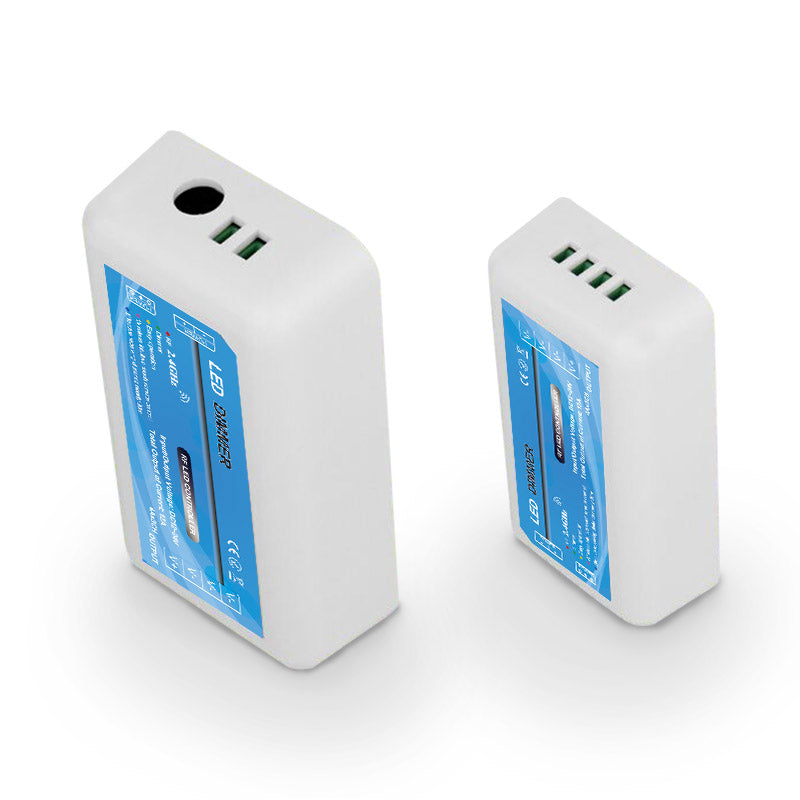

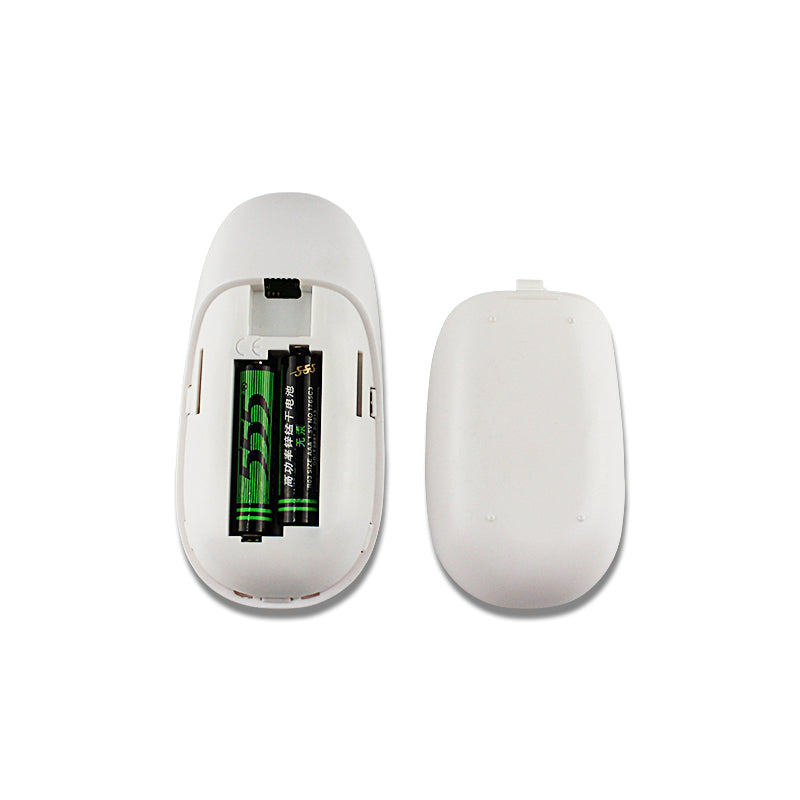

Detailed Images

Installation

Before using it, You need to link the remote to the receiver.

1. Link the power, long press "Group x ON (x=1,2,3,4) ", light flash means pair success, than you can control it.
2. Relink the power, long Press that "Group x OFF(x=1,2,3,4) ", light flash 9 times means pair canceled,lights can't be controlled now.
3. Add more receivers in one zone, read step 1.
4. Reduce receivers in one zone, read step 2.

Q: How to make them 4 zones control separately or together, 1 zone for bedroon, 1 zone for lounge room, 1 zone for kitchen, 1 zone for living room?
A: 1. You need 1 remote and 4 receivers with led light.
2. Pair receiver A to Zone 1, pair receiver B to Zone 2, pair receiver C to Zone 3, Pair receiver D to Zone 4.
3. Press button 1 to select Zone 1 receiver and light, UP and Down for dimming, Left and right for modes, Turn on/off.
4. Press button 2 to select Zone 2 receiver and light, UP and Down for dimming, Left and right for modes, Turn on/off.
5. Press button 3 to select Zone 3 receiver and light, UP and Down for dimming, Left and right for modes, Turn on/off.
6. Press button 4 to select Zone 4 receiver and light, UP and Down for dimming, Left and right for modes, Turn on/off.
7. Press button all to select all zone receivers and lights, UP and Down for dimming, Left and right for modes, Turn on/off.

Q: How to make it with wifi control?

A: Buy the wifi ibox, install the wifi app on iphone or android. Contact us for more details!

Diagram:

Multi-zone guidance:
